Content
– Rapid thermal annealing
– PECVD
Rapid thermal annealing

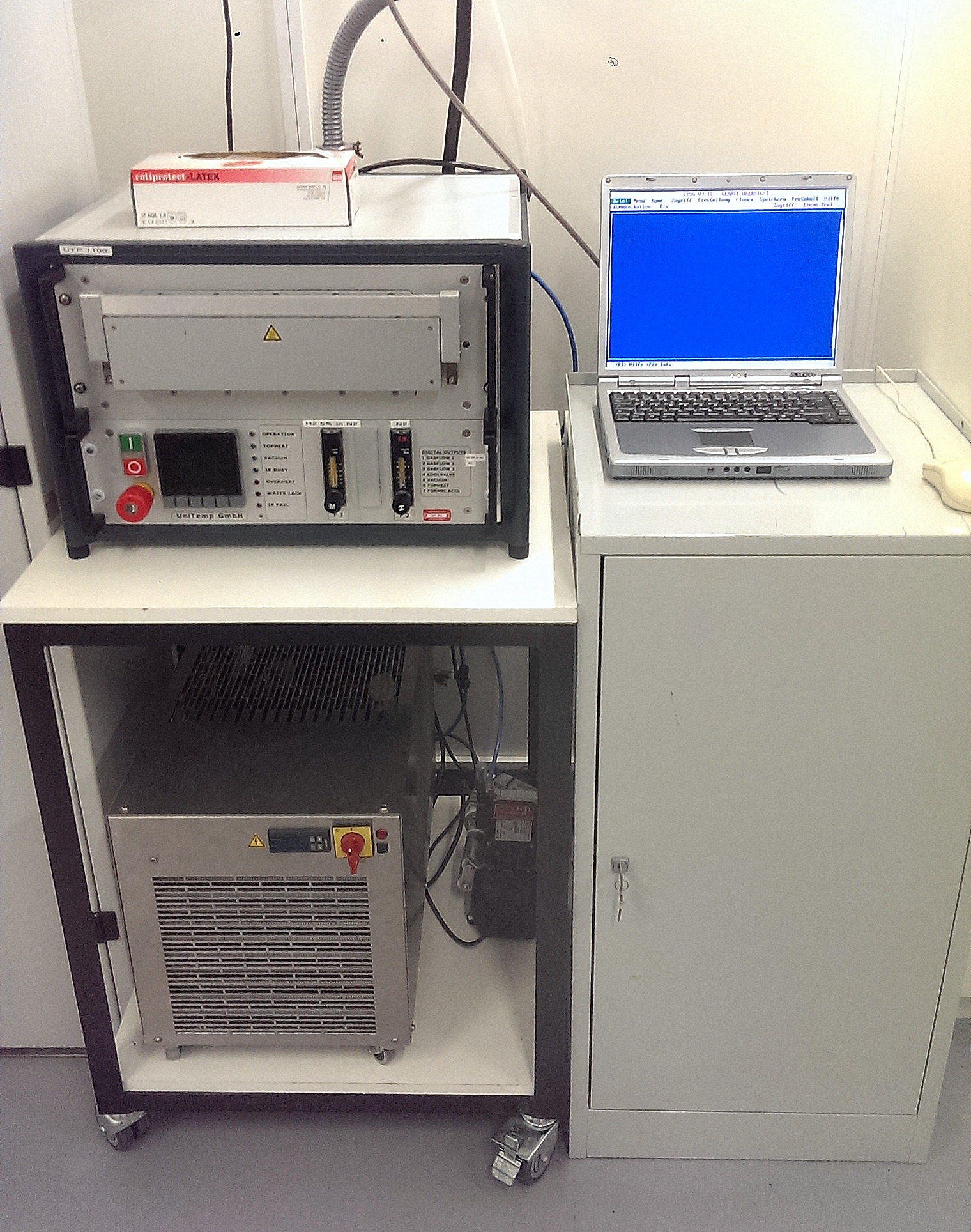

UntiTEMP UTP-1100 RTA (UniNe)
|
|
- Rapid thermal annealing
- Applications e.g. : Ni/Ge/Au Ohmic contacts annealing
- 75°C/s up to 1000°C
|
- Nitrogen and forming gas (5%H2 in N2) atmospheres
- 2″ to 150 mm wafers or squares
|
Training :
Gregoire Smolik
PECVD

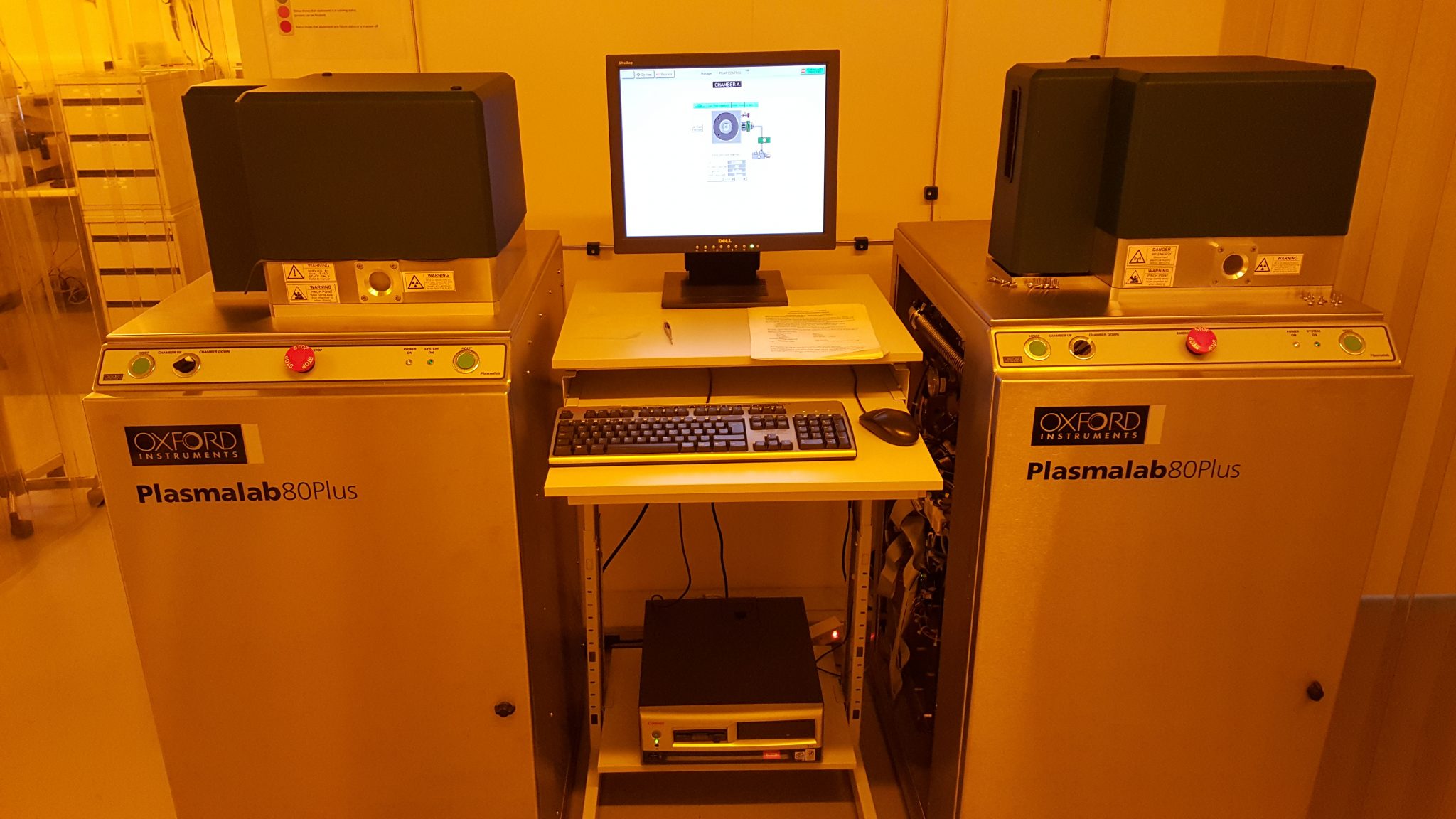

PlasmaLab 80+ (UniNe)
|
|
- PECVD of SiOx, SiNx, a-Si films
- 13.56MHz driven parallel plate reactor
|
- Substrate electrode: 240 mm
- Available gases: N20, NH3, SiH4, N2, CF4, O2
- Materials deposited: SiOx, SiOxNx, SiNx
|
Overview of the PlasmaLab80+:
User manual:
Have a look here.
Training :
Raphael Barbey
MANUAL THERMAL EVAPORATOR (UniNe)
|
|
- Home made thermal evaporator
- For expert users only
|
- Deposition of thin films transparent in infrared like ZnS, ZnSe
- Deposition of other materials on request (needs process characterization)
|
Training :
Grégoire Smolik
