Organic analysis and Vibrational spectroscopy

Agilent LDIR 8700

  • Thermoelectrocally cooled mercury cadmium telluride (MCT) detector
  • Infrared quantum cascade laser (QCL) light source
  • Fast scanning objective
  • High resolution camera
  • Spectral range 900 – 1800 cm-1
  • Spatial resolution ~1 micron
  • Spectral resolution ~0.06 cm-1
  • reflection modes
  • Motorised xy-stage controlled by software
  • Ge Attenuated total reflectance (ATR) objectives equipped with internal pressure sensor and highly accurate and stable column guidance mechanism of precise crystal positioning

Perkin Elmer Spectrum Two

  • ATR crystal: 1 reflection diamond ATR crystal
  • spectral range: 8300 – 350 cm-1
  • spectral resolution:  0.5 cm-1
  • Atmospheric Vapor Compensation
  • LC: Vanquish (Thermo Fisher Scientific)
  • High resolution mass spectrometer: Orbitrap Exploris 120 (Thermo Fisher Scientific)
  • Mass resolution: High mass resolution up to 120,000 (FWHM) at m/z 200 over the mass range m/z 40–3,000
  • Determination of the elemental compositions based on the accurate  m/z values
  • Scan speed:  22 Hz
  • Ionisation source: ESI and APCI
  • Polarity switching: Fast polarity switching with one full experimental cycle acquired at >1.4 Hz
  • Scan modes: Full scan, MS2 (DDA with Top4 @ 14 Hz), tMS2, tSIM, AIF, DIA and MSX
  • Full Scan MS – most predominantly used due to comprehensive, high-quality quantitative data provided. Once a mass range is defined to capture all relevant ions, rest assured detection of all compounds in that range will be measured.
  • Targeted Selected Ion Monitoring (t-SIM) – used for analyses requiring higher sensitivity because you can set a narrow mass range (as narrow as 0.4 Da).
  • Targeted -MS2 (t-MS2 formerly Parallel Reaction Monitoring (PRM)) – used for analyses in complex samples requiring additional selectivity. A fragmentation-based acquisition mode, Targeted-MS2 provides more selectivity because a high-resolution product ion spectrum is created for only desired precursor ions based on the inclusion list.
  • Softwares: Compound Discover, m/z Cloud mass spectral library, TraceFinder and Chromeleon

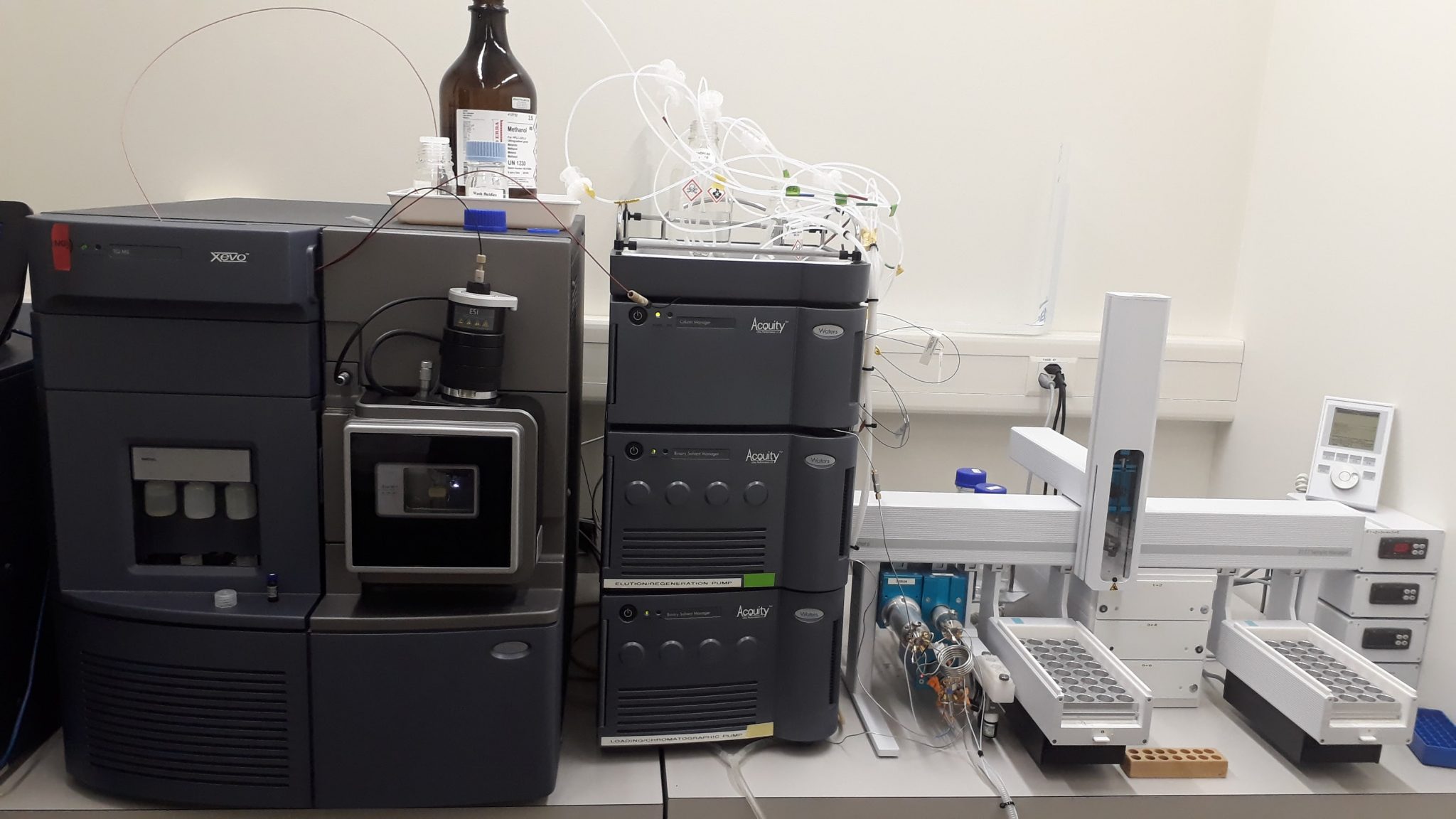

Waters Acquity Xevo TQ MS

  • Ionisation source  ESI or APCI
  • Peripherals  online preconcentration system

Agilent Technologies Infinity 1290

  • Detectors  fluorescence, UV-vis and refractive index detectors

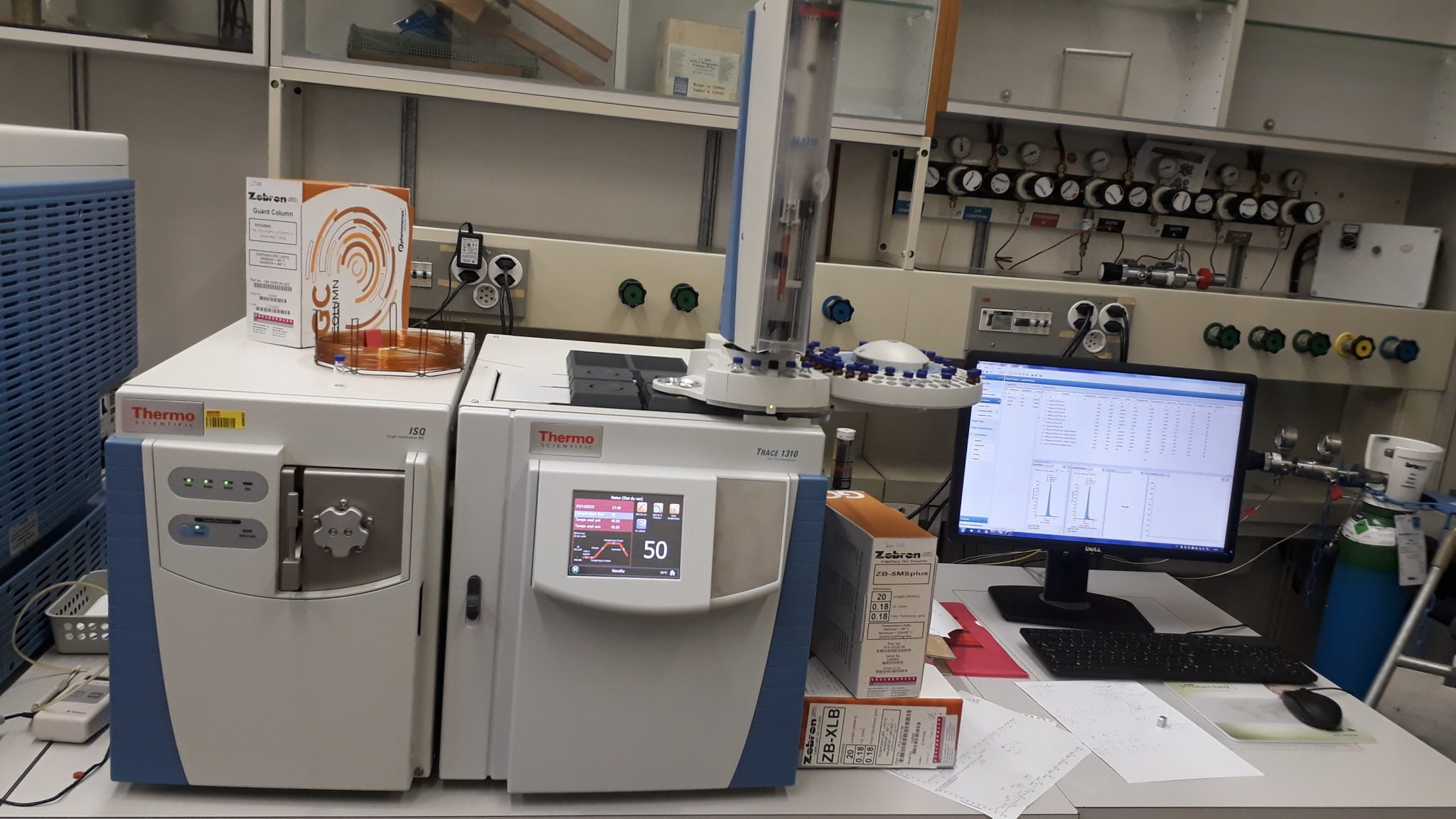

Thermo Scientific TRACE 1310 ISQ single quadrupole

  • Sample type liquid injection only
  • Injector type  standard

Thermo Scientific TRACE 1310 TSQ Quantum XLS Ultra

  • Sample type liquid injection only
  • Injector type  standard and PTV

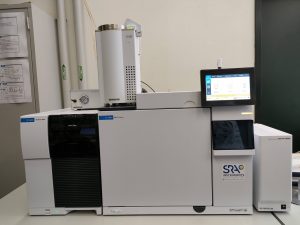

Micro furnace Pyrolyzer Frontier 3030D

GC-MS Agilent 8890



Elementar Vario TOC Cube

  • Measured items  TC,IC,TOC,NPOC, TN
  • Measurement method  wet oxidation/NDIR TN: chemiluminescence
  • Measurement range (mg/L)   TC: 0 to 500’000   IC: 0 to 5’500   TN:0 to 1’000
  • Detection limit  6 µg/L TC, 8 µg/L TN
  • Measuring time  IC or TC: approx. 4 mins
  • Automatic dilution  dilution factor 2 to 50
  • Measurement accuracy  CV1.5 % max. (CV2 % max. at 1000mg/L or higher)

Solid sample combustion unit

  • Measured items  TC, TOC
  • Measuring Range  TC: 0 to 100%

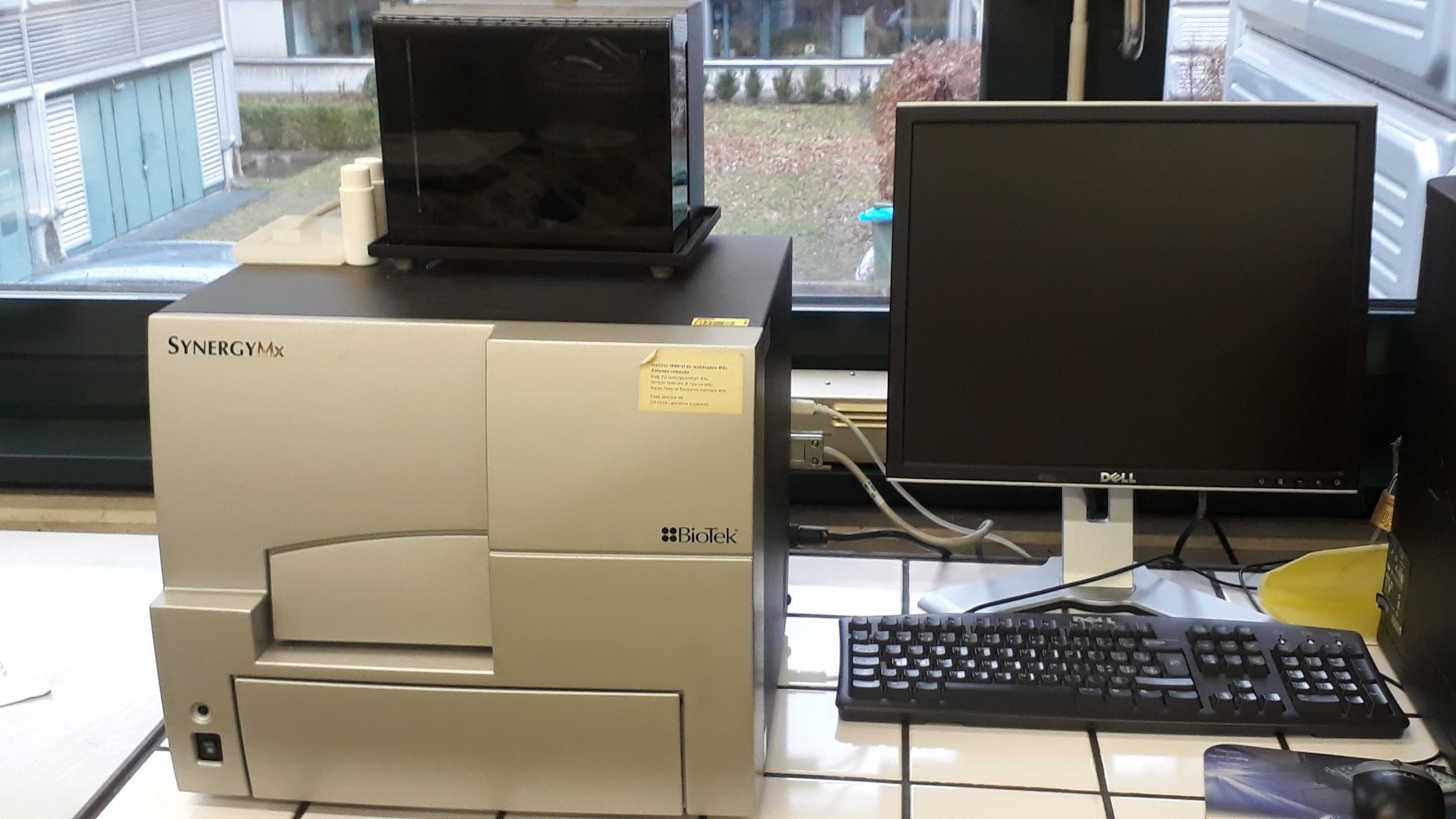

Biotek Synergy MX

  • Methods  absorption, fluorescence, luminescence
  • Peripherals  automatic dual syringe dispenser

PerkinElmer Tri-Carb 4910 TR

  • Energy range 0-2,000 keV
  • Efficiency, Normal Count Mode (minimum acceptable)

    3H (0-18.6 keV): 60%

    14C (0-156 keV): 95%

  • Observed Background, Normal Count Mode (average)

    3H (0-18.6 keV): 17 CPM

    14C (0-156 keV): 26 CPM
