Cavity Optomechanics

Cavity Quantum Optomechanics

Although mechanical oscillator are ubiquitous in our modern information technology, and used in time-keeping, MEMS accelerometers or in radio frequency filters in cell-phones, yet their quantum control had remained an outstanding challenge. The ability to achieve such quantum control has been a longstanding challenge of condensed matter Physics1 and quantum optics2 alike. In contrast to trapped ions3 no efficient manipulation techniques were available. Over the past decade, this has become a reality: Following quantum control of individual isolated quantum systems, the latter has now been extended to macroscopic, engineered mechanical oscillators,  owing to the advances in the field of cavity optomechanics4–6.

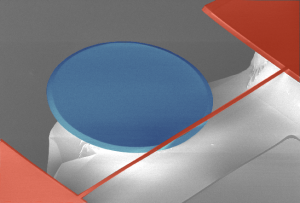

Figure 1: Mechanical systems in the quantum regime utilizing cavity opto-mechanical and electromechanical coupling for past research at EPFL.

While the coupling of optical and mechanical degrees of freedom has a long history in establishing the theoretical limits of interferometric position measurements for gravitational wave detection7,8, radiation pressure forces were too weak to be experimentally measurable on macroscopic mechanical oscillators. In 2005, working with Kerry Vahala at Caltech Kippenberg discovered that optical microcavities are natural embodiments of this coupling as the exhibit both high Q optical modes coupled to co-located mechanical modes. This allowed the observation for the first time pressure dynamical backaction9 – a delayed form of radiation pressure backaction that enables amplifying mechanical motion. The discovery of radiation pressure dynamical backaction in microresonators8 was not anticipated or predicted in this system, and broke with the conventional dogma that such forces are masked by thermal effects10 and enabled to experimentally explore the radiation pressure coupling of light and mechanical motion, which had been theoretically analyzed since 1970 by Braginsky in the context of gravitational wave detection. Radiation pressure had also been proposed to cool mechanical motion by Braginsky8. In 2006, Kippenberg’s research group at the Max Planck of Quantum Optics demonstrated for the first time (simultaneously to Zeilinger11 and Heidman12) radiation pressure cooling of a mechanical oscillator11,12, and demonstrated that the effect was purely ascribed to radiation pressure.  Although this cooling had been originally predicted by the Russian Scientist Braginsky in 196919 the quantum limit of this method had remained unexplored. An important advance in theoretical understanding, was the development of a first quantum theory or radiation pressure dynamical backaction cooling (developed by the Kippenberg and Zwerger groups, simultaneously to F. Marquardt and S. Girvin13). This work demonstrated the close analogy to sideband cooling of trapped ions14,15, and identified the resolved sideband regime. Radiation pressure resolved sideband in the optical domain was realized at the MPQ in 2008 for the first time16, thereby demonstrating a technique that is capable of cooling the oscillator to the quantum ground state, a key prerequisite to exploring the quantum regime of mechanical oscillators, that requires temperatures far below those cryogenically available. Since this first demonstration, resolved-sideband cooling has been the workhorse of virtually all experiments aimed at observing quantum effects in macroscopic mechanical resonators17.

The immense attention that the optomechanical cooling experiment garnered in the years following 2006, let numerous groups to explore this new interaction in various micro- and nanoscale optomechanical18–21. Optomechanical coupling and the effects of radiation pressure in such structures, enabled major scientific advances and breakthroughs by numerous groups, and equally important numerous theoretical advances, that continue to this day. Experimental breakthroughs include cooling close to the quantum ground state22–24, phonon lasing9, entanglement25 of mechanical motion and microwaves, observation of radiation pressure shot noise26, optomechanical squeezing27,28, quantum coherent coupling22,24, measurements of a mechanical oscillator at the thermal decoherence rate29, coherent state transfer30, backaction evading techniques3031 and preparation of mechanical squeezed states323334, among others. Indeed, these experiments signal that after quantum control of atoms, ions and superconducting circuits, quantum control of engineered mechanical oscillators has become a reality. It has also has led to new technological developments, such as interfaces that convert via mechanical systems radio waves to optical signals35, quantum limited measurements of radio waves36, optomechanical accelerometers, or amplification of microwaves37. Theoretically a myriad of advances have been made and theoretical protocols emerged, for instance new schemes for optomechanical reservoir engineering to generate optical and mechanical squeezing3839, and entirely new interactions of light and sound conceived40 to create topological phases of light and sound.

Fundamentally, these experiments use identical conceptual advances, notably optomechanical coupling in engineered micro-resonators and the use of sideband cooling or amplification. The Kippenberg laboratory contributed not only via the observation of dynamical backaction of radiation pressure, but via the development of optomechanical techniques and nano-optomechanical systems used in the field. The Kippenberg group reported the novel phenomenon of optomechanically induced transparency25, that is widely used in optomechanical experiments as it is a required protocol in storage of phonons41, wavelength conversion35,42,43. The team developed calibration techniques for the vacuum coupling rate, that are widely employed in the field44, in addition to identifying first limits of classical phase noise to cooling16 and extending optomechanics to near fields45, proposing schemes for Fock state generation46 and analyzing multi-mode optomechanical interactions47. In addition his group developed a cooling theory for describing the oscillator in the strong coupling regime48, which was key to understand the regime of ground state cooling22 in the presence of quantum coherent coupling. Moreover his team advanced the most precise measurements of mechanical motion to date, and demonstrated the first measurement26 (simultaneously with a group in the US at JILA27) of a mechanical oscillator with a sensitivity sufficient to resolve the zero point motion, i.e. a measurement at the standard quantum limit (SQL)4950, culminating in real time quantum feedback29. In addition the Kippenberg laboratory reported quantum coherent coupling of light and mechanical motion, work in which the mechanical oscillator spends more than 1/3 of its time in the quantum ground state13.

The discovery of optomechanical coupling along with the successful laser cooling of mechanical oscillators demonstrated by his research group, along with other advances on optomechancial systems, has led to the development of a new research field of “cavity optomechanics”4,5, that has led to methods and techniques by which quantum control of mechanical systems can be achieved and by which mechanical oscillators can be measured with unprecedented sensitivity. Moreover, optomechanical coupling has been extended to other forms of mechanical systems such as superfluid modes, trapped particles51, plasmonic systems, or even molecules. It moreover has led to entirely new ways in which electromagnetic or optical fields can be manipulated, measured or interconverted, with evident application potential.

Quotes from Literature:

“A major achievement of the past decade has been the realization of macroscopic quantum systems by exploiting the interactions between optical cavities and mechanical resonators”52

“Since this first demonstration, resolved-sideband cooling has been the workhorse of most experiments aimed at observing quantum effects in macroscopic mechanical resonators”17

Key publications of the Kippenberg lab on:  Cavity Quantum optomechanics

  1. Schliesser, A., Del’Haye, P., Nooshi, N., Vahala, K. & Kippenberg, T. Radiation Pressure Cooling of a Micromechanical Oscillator Using Dynamical Backaction. Phys. Rev. Lett. 97, 243905–243905 (2006).
  2. Kippenberg, T. J. & Vahala, K. J. Cavity optomechanics: back-action at the mesoscale. Science 321, 1172–6 (2008).
  3. Wilson-Rae, I., Nooshi, N., Zwerger, W. & Kippenberg, T. J. Theory of Ground State Cooling of a Mechanical Oscillator Using Dynamical Backaction. Phys. Rev. Lett. 99, 093901–093901 (2007).
  4. Riviere, R. et al. Optomechanical sideband cooling of a micromechanical oscillator close to the quantum ground state. Phys. Rev. A 83, 063835–063835 (2011).
  5. Schliesser, A., Rivière, R., Anetsberger, G., Arcizet, O. & Kippenberg, T. J. Resolved-sideband cooling of a micromechanical oscillator. Nat. Phys. 4, 415–419 (2008).
  6. Verhagen, E., Deleglise, S., Weis, S., Schliesser, A. & Kippenberg, T. J. Quantum-coherent coupling of a mechanical oscillator to an optical cavity mode. Nature 482, 63–68 (2012).
  7. Weis, S. et al. Optomechanically induced transparency. Science 330, 1520–3 (2010).
  8. Wilson, D. J. et al. Measurement-based control of a mechanical oscillator at its thermal decoherence rate. Nature 524, 325–329 (2015).
  9. Aspelmeyer, M., Kippenberg, T. J. & Marquardt, F. Cavity optomechanics. Rev. Mod. Phys. 86, 1391–1452 (2014).
  10. L. D. Tóth, et al. “Engineered dissipative quantum reservoir for microwave light using circuit optomechanics” Nature Physics (2017)
  11. V. Sudhir, et al. “Appearance and disappearance of quantum correlations in measurement-based feedback control of a mechanical oscillator” Phys. Rev. X  (2017)

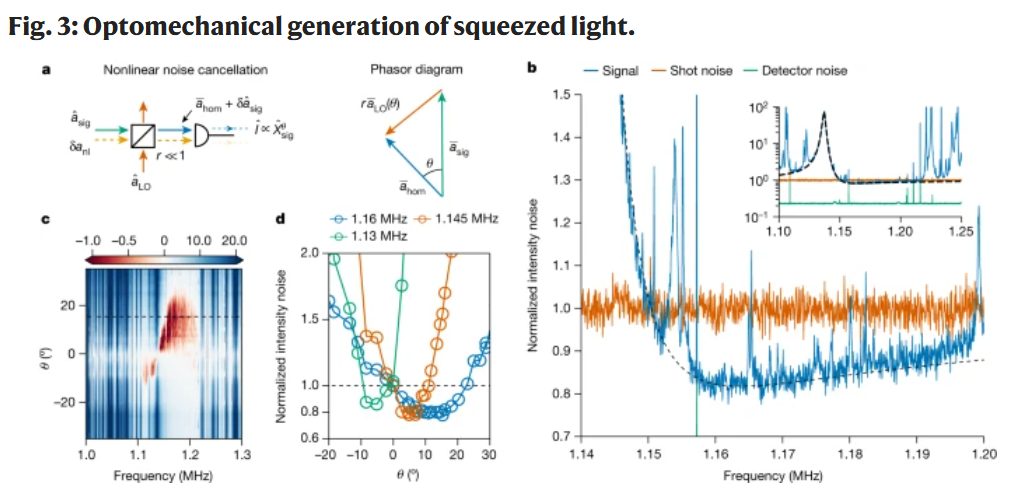

  12. V. Sudhir, et al. “Quantum correlations of light due to a room temperature mechanical oscillator” Phys. Rev. X (2017)

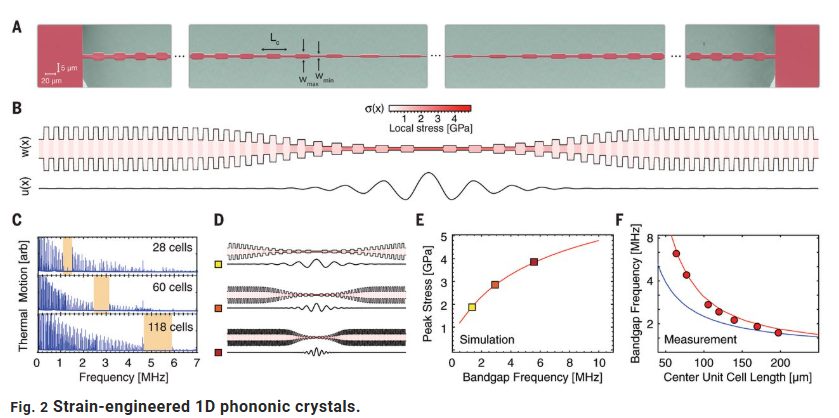

  13. A. Ghadimi, A. H. et al. Strain engineering for ultra-coherent nanomechanical oscillators (Science, 2018)

References

  1. Schwab, K. C. & Roukes, M. L. Putting mechanics into Quantum mechanics. Physics Today 58, 36–42 (2005).
  2. Wilson-Rae, I., Zoller, P. & Imamoḡlu, A. Laser Cooling of a Nanomechanical Resonator Mode to its Quantum Ground State. Physical Review Letters 92, (2004).
  3. Leibfried, D., Blatt, R., Monroe, C. & Wineland, D. Quantum dynamics of single trapped ions. Rev. Mod. Phys. 75, 281–324 (2003).
  4. Kippenberg, T. J. & Vahala, K. J. Cavity optomechanics: back-action at the mesoscale. Science 321, 1172–6 (2008).
  5. Aspelmeyer, M., Kippenberg, T. J. & Marquardt, F. Cavity optomechanics. Rev. Mod. Phys. 86, 1391–1452 (2014).
  6. Aspelmeyer, M., Meystre, P. & Schwab, K. Quantum optomechanics. Physics Today 65, 29 (2012).
  7. Braginsky, V. B. Classical and quantum restrictions on the detection of weak disturbances of a macroscopic oscillator. Soviet Physics JETP 26, 831–831 (1968).
  8. Braginsky, V. B. & Manukin, A. B. Investigation of dissipative pondermotive effects of electromagnetic radiation. Soviet Physics JETP 31, 829–830 (1970).
  9. Kippenberg, T. J., Rokhsari, H., Carmon, T., Scherer, A. & Vahala, K. J. Analysis of Radiation-Pressure Induced Mechanical Oscillation of an Optical Microcavity. Phys. Rev. Lett. 95, 033901 (2005).
  10. Metzger, C. H. & Karrai, K. Cavity cooling of a microlever. Nature 432, 1002–5 (2004).
  11. Gigan, S. et al. Self-cooling of a micromirror by radiation pressure. Nature 444, 67–70 (2006).
  12. Arcizet, O., Cohadon, P.-F., Briant, T., Pinard, M. & Heidmann, A. Radiation-pressure cooling and optomechanical instability of a micromirror. Nature 444, 71–74 (2006).
  13. Marquardt, F., Chen, J., Clerk, A. & Girvin, S. Quantum Theory of Cavity-Assisted Sideband Cooling of Mechanical Motion. Physical Review Letters 99, 093902–093902 (2007).
  14. Diedrich, F., Bergquist, J. C., Itano, W. M. & Wineland, D. J. Laser cooling to the zero-point energy of motion. Physical Review Letters 62, 403–406 (1989).
  15. Neuhauser, W., Hohenstatt, M., Toschek, P. & Dehmelt, H. Optical-Sideband Cooling of Visible Atom Cloud Confined in Parabolic Well. Phys. Rev. Lett. 41, 233–236 (1978).
  16. Schliesser, A., Rivière, R., Anetsberger, G., Arcizet, O. & Kippenberg, T. J. Resolved-sideband cooling of a micromechanical oscillator. Nature Physics 4, 415–419 (2008).
  17. Jayich, A. B. Ten years of Nature Physics: Frozen motion. Nat Phys 11, 710–711 (2015).
  18. Eichenfield, M., Chan, J., Camacho, R. M., Vahala, K. J. & Painter, O. Optomechanical crystals. Nature 462, 78–82 (2009).
  19. Thompson, J. D. et al. Strong dispersive coupling of a high-finesse cavity to a micromechanical membrane. Nature 452, 72–72 (2008).
  20. Teufel, J. D., Harlow, J. W., Regal, C. A. & Lehnert, K. W. Dynamical Backaction of Microwave Fields on a Nanomechanical Oscillator. Phys. Rev. Lett. 101, 197203 (2008).
  21. Teufel, J. D. et al. Circuit cavity electromechanics in the strong-coupling regime. Nature 471, 204–208 (2011).
  22. Teufel, J. D. et al. Sideband cooling of micromechanical motion to the quantum ground state. Nature 475, 359–363 (2011).
  23. Chan, J. et al. Laser cooling of a nanomechanical oscillator into its quantum ground state. Nature 478, 89–92 (2011).
  24. Verhagen, E., Deleglise, S., Weis, S., Schliesser, A. & Kippenberg, T. J. Quantum-coherent coupling of a mechanical oscillator to an optical cavity mode. Nature 482, 63–68 (2012).
  25. Palomaki, T. A., Teufel, J. D., Simmonds, R. W. & Lehnert, K. W. Entangling Mechanical Motion with Microwave Fields. Science 342, 710–710 (2013).
  26. Purdy, T. P., Peterson, R. W. & Regal, C. a. Observation of Radiation Pressure Shot Noise on a Macroscopic Object. Science 339, 801–804 (2013).
  27. Purdy, T. P., Yu, P., Peterson, R. W., Kampel, N. S. & Regal, C. A. Strong Optomechanical Squeezing of Light. Physical Review X 031012, 1–8 (2013).
  28. Safavi-Naeini, A. H. et al. Squeezed light from a silicon micromechanical resonator. Nature 500, 185–189 (2013).
  29. Wilson, D. J. et al. Measurement-based control of a mechanical oscillator at its thermal decoherence rate. Nature 524, 325–329 (2015).
  30. Hertzberg, J. B. et al. Back-action-evading measurements of nanomechanical motion. Nature Physics 6, 213–217 (2009).
  31. Suh, J. et al. Mechanically detecting and avoiding the quantum fluctuations of a microwave field. Science 344, 1262–1265 (2014).
  32. Wollman, E. E. et al. Quantum squeezing of motion in a mechanical resonator. Science 349, 952–955 (2015).
  33. Lecocq, F., Clark, J. B., Simmonds, R. W., Aumentado, J. & Teufel, J. D. Quantum Nondemolition Measurement of a Nonclassical State of a Massive Object. Phys. Rev. X 5, 041037 (2015).
  34. Pirkkalainen, J.-M., Damskägg, E., Brandt, M., Massel, F. & Sillanpää, M. A. Squeezing of Quantum Noise of Motion in a Micromechanical Resonator. Phys. Rev. Lett. 115, 243601 (2015).
  35. Andrews, R. W. et al. Bidirectional and efficient conversion between microwave and optical light. Nature Physics 10, 321–326 (2014).
  36. Bagci, T. et al. Optical detection of radio waves through a nanomechanical transducer. Nature 507, 81–85 (2014).
  37. Massel, F. et al. Microwave amplification with nanomechanical resonators. Nature 480, 351–4 (2011).
  38. Kronwald, A., Marquardt, F. & Clerk, A. A. Dissipative optomechanical squeezing of light. New J. Phys. 16, 063058 (2014).
  39. Kronwald, A., Marquardt, F. & Clerk, A. A. Arbitrarily large steady-state bosonic squeezing via dissipation. Phys. Rev. A 88, 063833 (2013).
  40. Peano, V., Brendel, C., Schmidt, M. & Marquardt, F. Topological Phases of Sound and Light. Phys. Rev. X 5, 031011 (2015).
  41. Palomaki, T. a, Harlow, J. W., Teufel, J. D., Simmonds, R. W. & Lehnert, K. W. Coherent state transfer between itinerant microwave fields and a mechanical oscillator. Nature 495, 210–4 (2013).
  42. Regal, C. A. & Lehnert, K. W. From cavity electromechanics to cavity optomechanics. in Journal of Physics: Conference Series vol. 264 012025 (IOP Publishing, 2011).
  43. Hill, J. T., Safavi-Naeini, A. H., Chan, J. & Painter, O. Coherent optical wavelength conversion via cavity optomechanics. Nature communications 3, 1196 (2012).
  44. Gorodetsky, M. L., Schliesser, A., Anetsberger, G., Deleglise, S. & Kippenberg, T. J. Determination of the vacuum optomechanical coupling rate using frequency noise calibration. Optics Express 18, 23236 (2010).
  45. Anetsberger, G. et al. Near-field cavity optomechanics with nanomechanical oscillators. Nat Phys 5, 909–914 (2009).
  46. Galland, C., Sangouard, N., Piro, N., Gisin, N. & Kippenberg, T. J. Heralded Single-Phonon Preparation, Storage, and Readout in Cavity Optomechanics. Physical Review Letters 112, (2014).
  47. Dobrindt, J. M. & Kippenberg, T. J. Theoretical analysis of mechanical displacement measurement using a multiple cavity mode transducer. Physical review letters 104, 033901 (2010).
  48. Dobrindt, J. M., Wilson-Rae, I. & Kippenberg, T. J. Parametric Normal-Mode Splitting in Cavity Optomechanics. Physical Review Letters 101, (2008).
  49. Caves, C. Quantum-mechanical radiation-pressure fluctuations in an interferometer. Physical Review Letters 45, 75–75 (1980).
  50. LaHaye, M. D. Approaching the Quantum Limit of a Nanomechanical Resonator. Science 304, 74–77 (2004).
  51. Chang, D. E. et al. Cavity opto-mechanics using an optically levitated nanosphere. Proceedings of the National Academy of Sciences 107, 1005–10 (2010).
  52. Alba, R. D. et al. Tunable phonon-cavity coupling in graphene membranes. Nat Nano 11, 741–746 (2016).
