Chemical Vapor Transport Method
Chemical Vapor Transport (CVT) is a method widely used for the synthesis and growth of crystalline materials. First popularized by Schäfer in the mid-20th century, CVT involves the transport of a substance in the vapor phase from a source region to a deposition region, where it crystallizes. This process typically requires a transport agent—commonly halogens or halogen compounds—that facilitates the volatilization of the material at the source and its subsequent deposition at a different location, usually determined by a temperature gradient within a two-zone furnace setup.
The basic principle behind CVT is that a solid or condensed phase, which does not naturally possess sufficient vapor pressure for volatilization, can be transformed into a gaseous phase through a reaction with the transport agent. The resultant vapor then travels to a cooler region where it undergoes deposition, forming crystals. This transport is driven by convection and diffusion, with the precise optimization of various parameters, such as growth temperature, transport direction, mass transport rate, and the choice of transport agent, being crucial for successful crystal formation.
CVT reactions are governed by thermodynamics, specifically the free energy changes associated with the reaction. For example, an exothermic reaction favors transport from a cooler to a hotter zone, while an endothermic reaction favors the reverse. Moreover, if the reaction is excessively exothermic or endothermic, the transport process may be hindered altogether.
The technique has profound implications in both basic research and practical applications. In research, CVT is valuable for producing high-quality single crystals necessary for detailed structural analysis as well as for fundamental study of materials properties. Industrially, CVT processes are utilized in the manufacturing of ultrapure materials and play a role in the functioning of devices like halogen lamps.
Floating zone
The Floating Zone (FZ) technique is a sophisticated, crucible-free method of crystal growth used extensively for producing high-purity crystals. Unlike traditional methods, FZ growth maintains a molten zone between two vertical solid rods purely through surface tension. This unique approach involves dipping a seed crystal into one end of the molten zone and gradually pulling the liquid from the molten zone, resulting in a single crystal. One of the primary advantages of the FZ technique is the elimination of any container or crucible. This is crucial because it removes the risk of contamination from the crucible material, which can introduce impurities and defects into the growing crystal. Consequently, the FZ method is particularly suited for growing highly reactive materials, intermetallic compounds, and refractory materials. Several heating methods can be employed to create and maintain the molten zone in FZ growth, including RF induction, optical heating, electron beam, laser, and resistance heating. Among these, the laser-heated floating zone (LHFZ) furnace offers significant advantages like precise heating control, improved temperature gradients, homogeneous heating…
Example: Growth of YTiO3

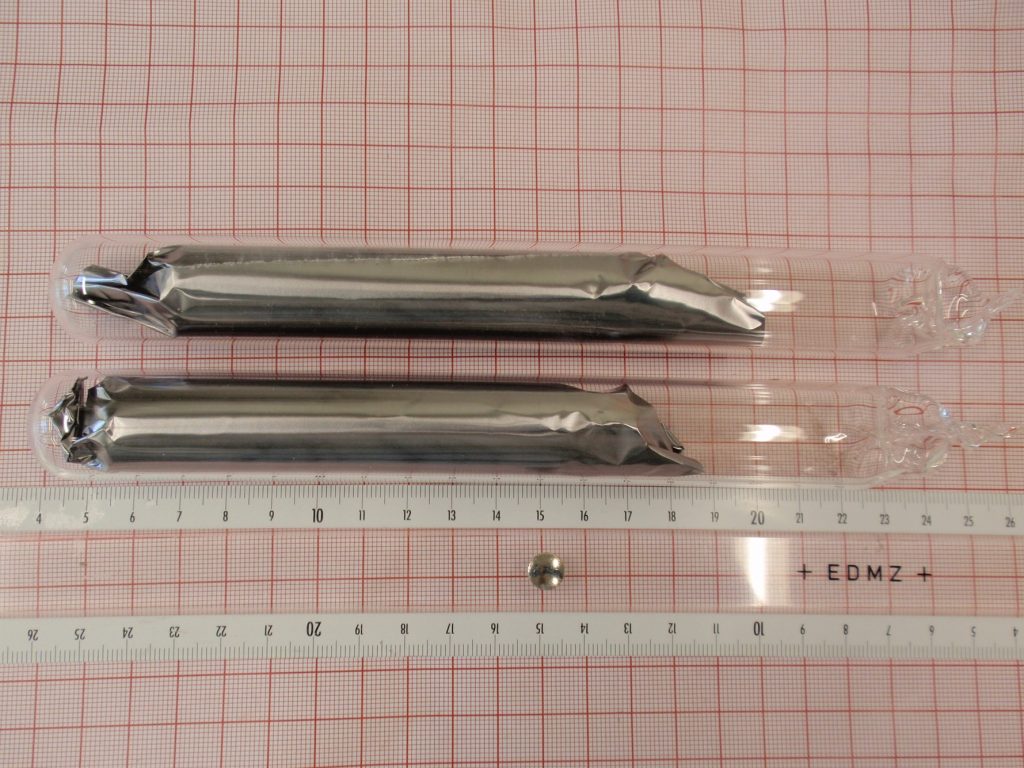

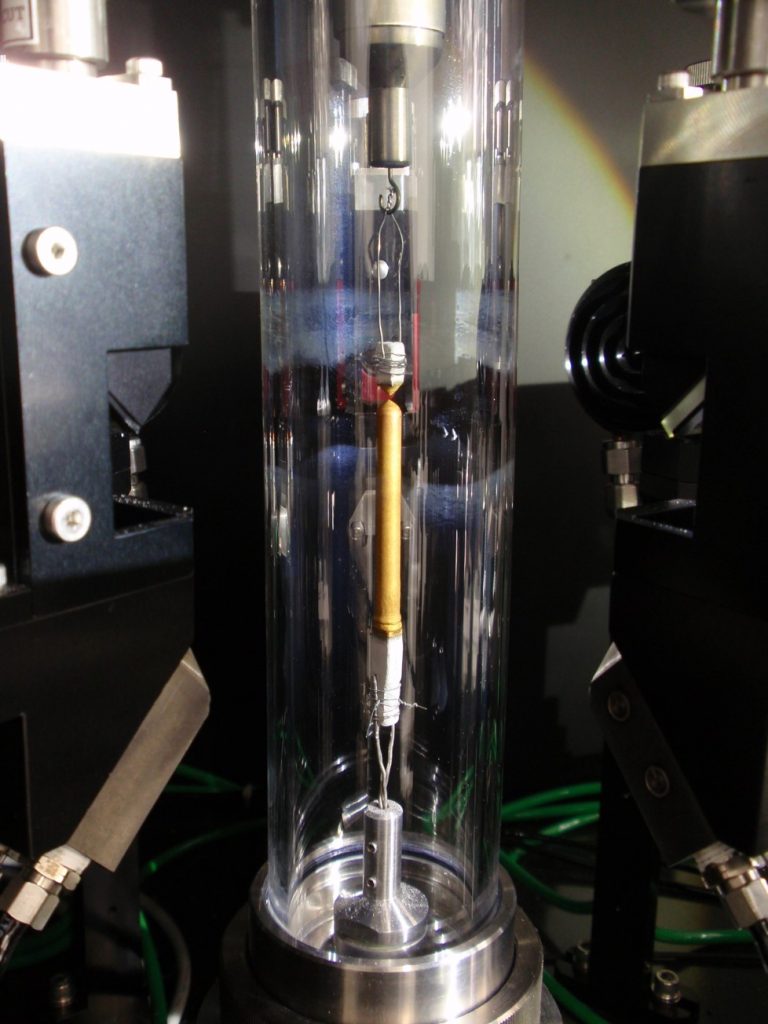

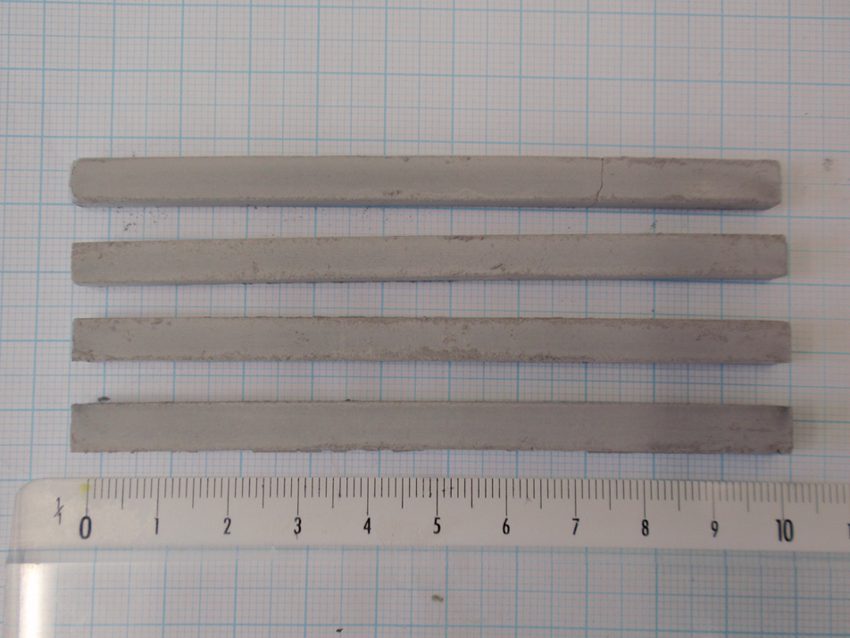

The YTiO3 powder is pressed into rods subsequently sealed in a quartz ampoule and fired at high temperature. Annealed rods are installed in the floating zone furnace, fixed with molybdenum wires. The YTiO3 single crystals are grown under controlled atmosphere. The temperature of the molten zone is 1840 °C measured by using a pyrometer. 6 cm long crystal is obtained in 6 hours. The rod surface shows a golden yellow color and is confirmed to be TiN.
